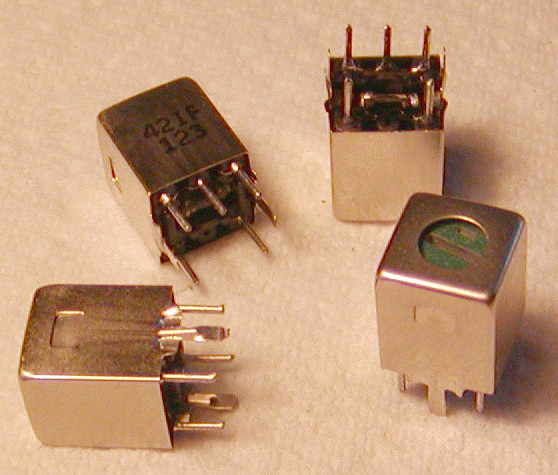

42IF123 - 10.7 MHz RF/IF Transformer
Consisting of a fixed 47 pF capacitor and 14 turns tapped at 5 turns with a 2 turn secondary
nominal 4.5 uH but adjustable from 3.2 uH up to 5.7 uH

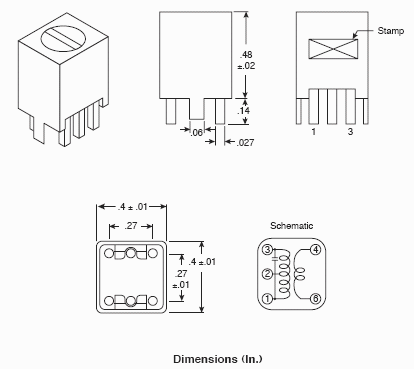

Electrical and Mechanical:


Add or remove capacitance and the RF transformer is usable from 3 MHz up to 19 MHz
Recommended for tuned circuits for 80, 40, 30 and 20 meters



42IF123
